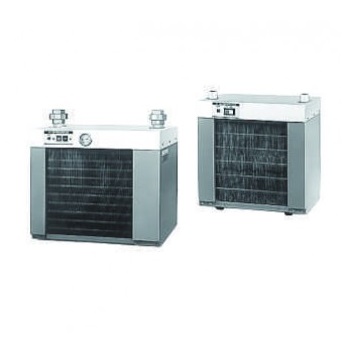

Can cool high temperature compressed air from compressors down to 40°C or less and efficiently remove moisture from the air. Cooling equipment is not required for this air cooled type. Maintenance is easy and the running cost is reasonable since this is free from concerns such as water supply cut-off or freezing.

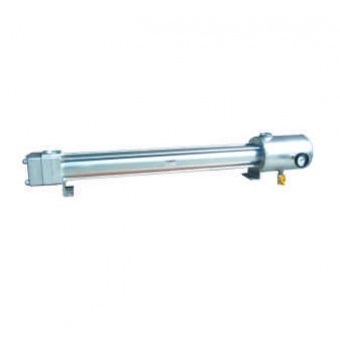

Can cool high temperature compressed air from compressors down to 40°C or less and efficiently remove moisture from the air.
Stable operation is possible even in an environment with a high temperature, high moisture and heavy foreign particles for this water cooled type.
Accumulates the compressed air from compressors, also prevents it from being pulsated, and cools it.
| Series | Port size | Tank capacity (L) |
|---|---|---|
| AT | 1/2 to 4B flange | 100 to 3000 |

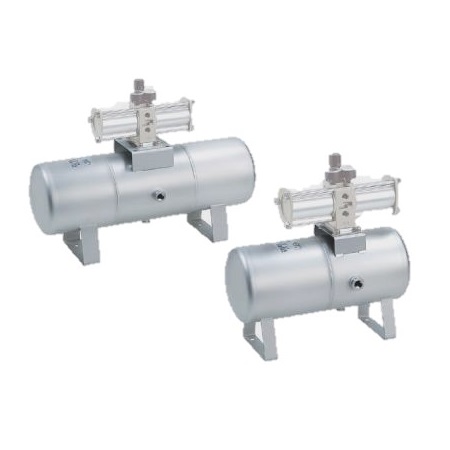

| Series | Port size | Tank capacity (L) |
|---|---|---|
| VBAT | 3/8，1/2，3/4 | 5，10，20，38 |

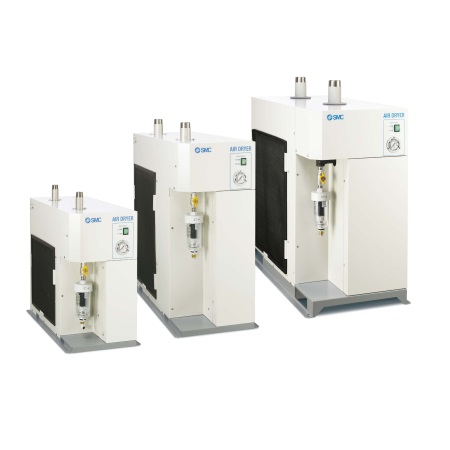

Applicable for the high-temperature environments Ambient temperature : Max. 45℃
Inlet air temperature : Max. 65. Increased air flow capacity

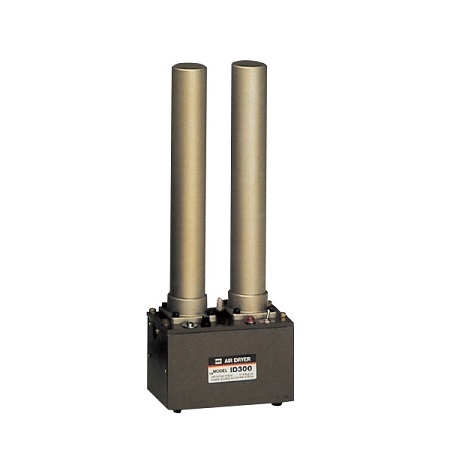

| Series | Outlet flow L/min (ANR) | Inlet flow L/min (ANR) |
|---|---|---|
| ID | 80 to 780 | 100 to 975 |

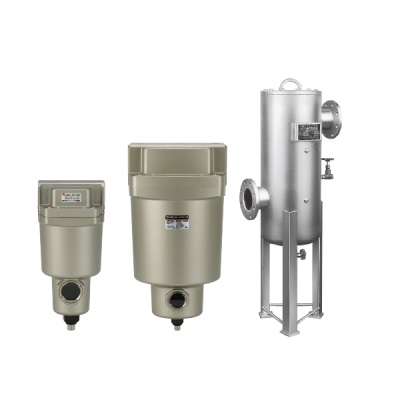

Can remove impurities such as oil, water and foreign matter in compressed air and can improve the function of a dryer in the downstream, extend the life of precision filter, and prevent trouble with the equipment.
| Series | Filtration (μm) | Air flow L/min (ANR) | Port size |
|---|---|---|---|
| AFF | 3 (Filtration efficiency 99%) | 300 to 42000 | 1/8 to 4B flange |

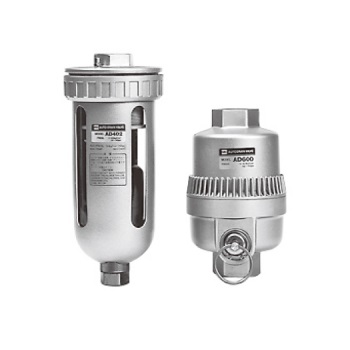

| Model | Port size | Drain discharge port size |
|---|---|---|
| AD402 | 1/4，3/8，1/2 | 3/8 |
| AD600 | 3/4，1 | 3/4，1 |

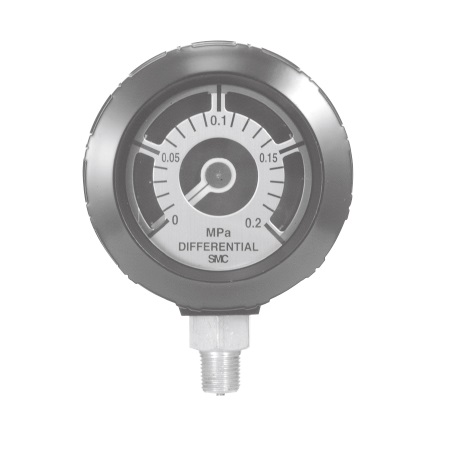

| Model | Accuracy | Scale range |
|---|---|---|
| GD40 | ±0.006MPa | 0 to 0.2MPa |

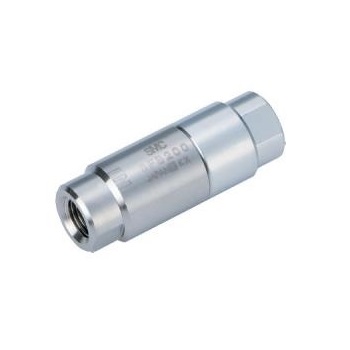

Type: Cartridge type, Straight
Series: SFB200
Operating pressure: Max.0.99MPa (Vacuum：1.3×10－6kPa）
Filtration: 120μm
