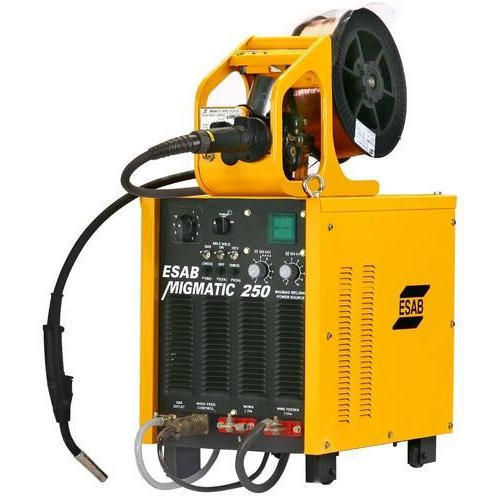

Co2 Welding is basically MiG/GMAW Welding. It is a fussion welding process where joining takes place by an electric arc sheilded by co2 gas and electrode is consumable.
Product Details:
| Minimum Order Quantity | 1 Number |
| Phase | Three Phase |
| Dimensions | 620 x 390 x 580 mm |
| Wire Diameter | 0.8-1.2 mm |
| Drive system | DC motor |
| Feed mechanism | Double roll quick changeover type |
| Insulation Class | H |
| Weight | 78 kg |
| Max. Continuous Welding Current | 250 A at 60% duty cycle; 190 A at 100% duty cycle |
| Open Circuit Voltage | 16-34 V DC |
| Speed control | Stepless |
| Wire type | MS |
| Voltage control steps | 10 (single knob) |
| Brand | Esab |
| Type Of Cooling | Forced Air |
| Interval time | 0.2-2 sec |
| Mains Supply | 3 Phase x 415 V,50 Hz |
| Spot welding time | 0.2-2 sec |
| Welding Current Range | 40-250 A |
| Wire Weight | 6 kg |
| Wire feed speed | 1.5-22 m/min |
Salient Features:
- Easy to set and operate.
- Digital VA meter.
- 10 step single knob voltage control.
- Heavy duty built-in feed system.
- Stepless speed control.
- Wire feed speed up to 22 m/min.
- Quick changeover wire feed mechanism.
- Suitable for 0.8 – 1.2 mm wire.
- Spot, Stitch and continuous welding modes.
- 2 / 4 stroke welding.
- Wire feeder with 5m interconnection standard.
- Thermal overload protection.
MIG Torches:
- PSF range of proven torches.
- Available in 3 or 4.5m lengths.
- Ergonomically designed.
- Light weight, durable and long life.
